Corrugated Metal Pipe Machinery
All specifications are designed according to customers’ requirements.
In collaboration with “PRD” Pacific Roller Die, Hayward, CA, USA Since 2020
Pipe Machines

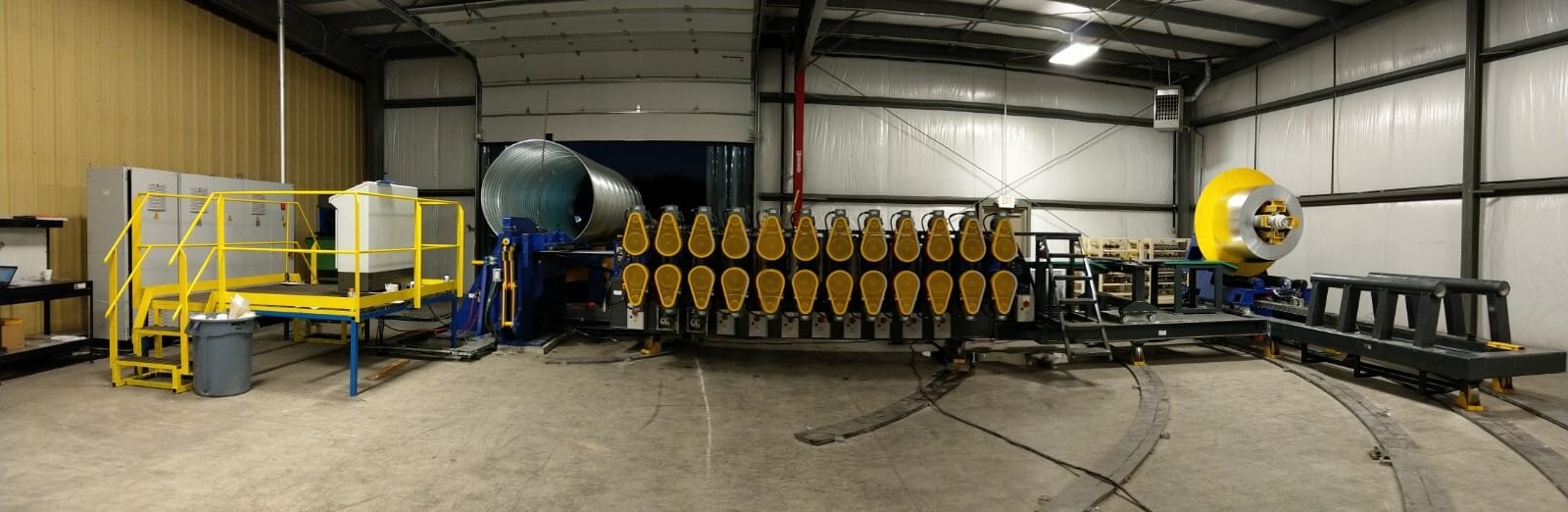

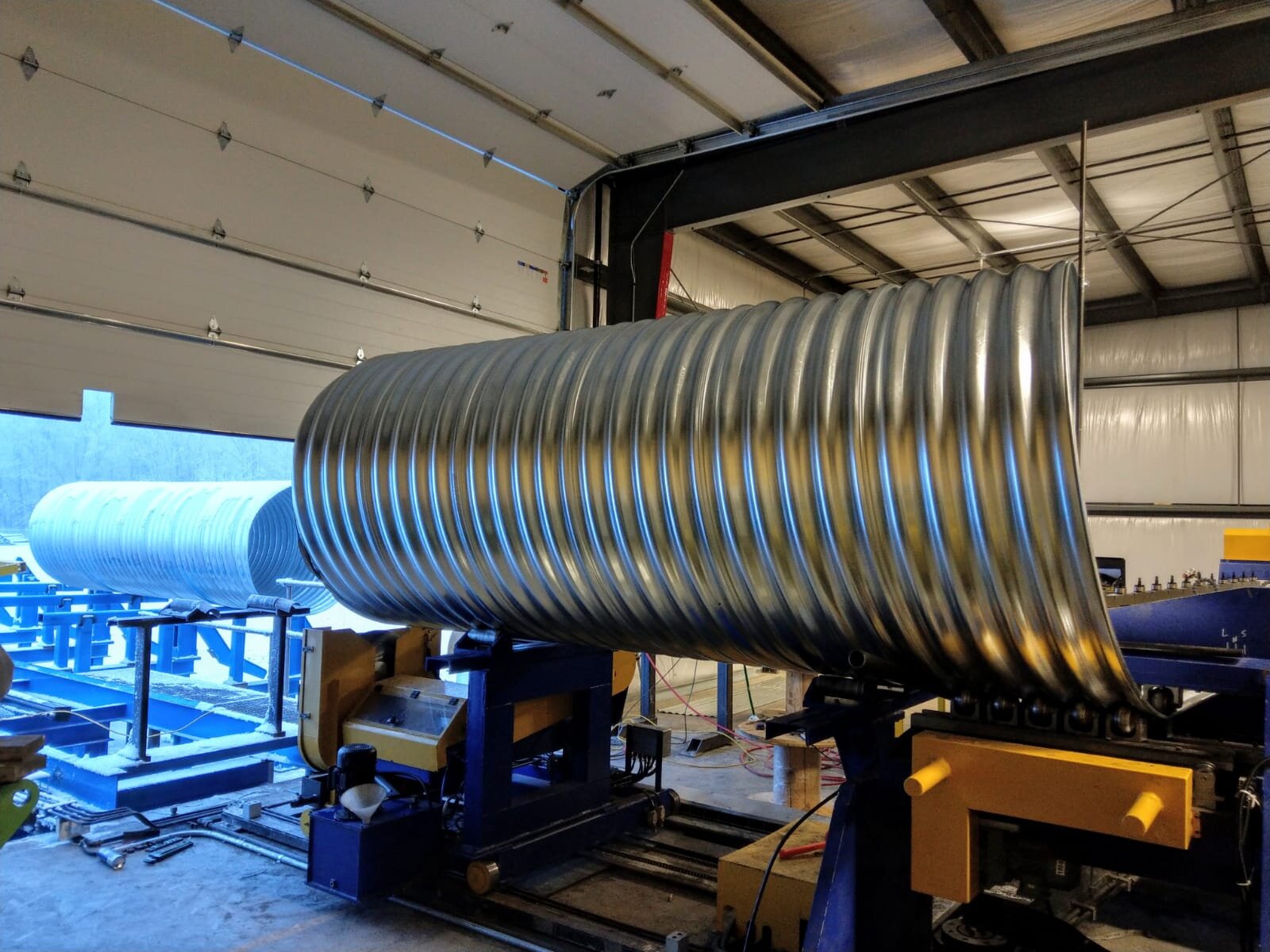

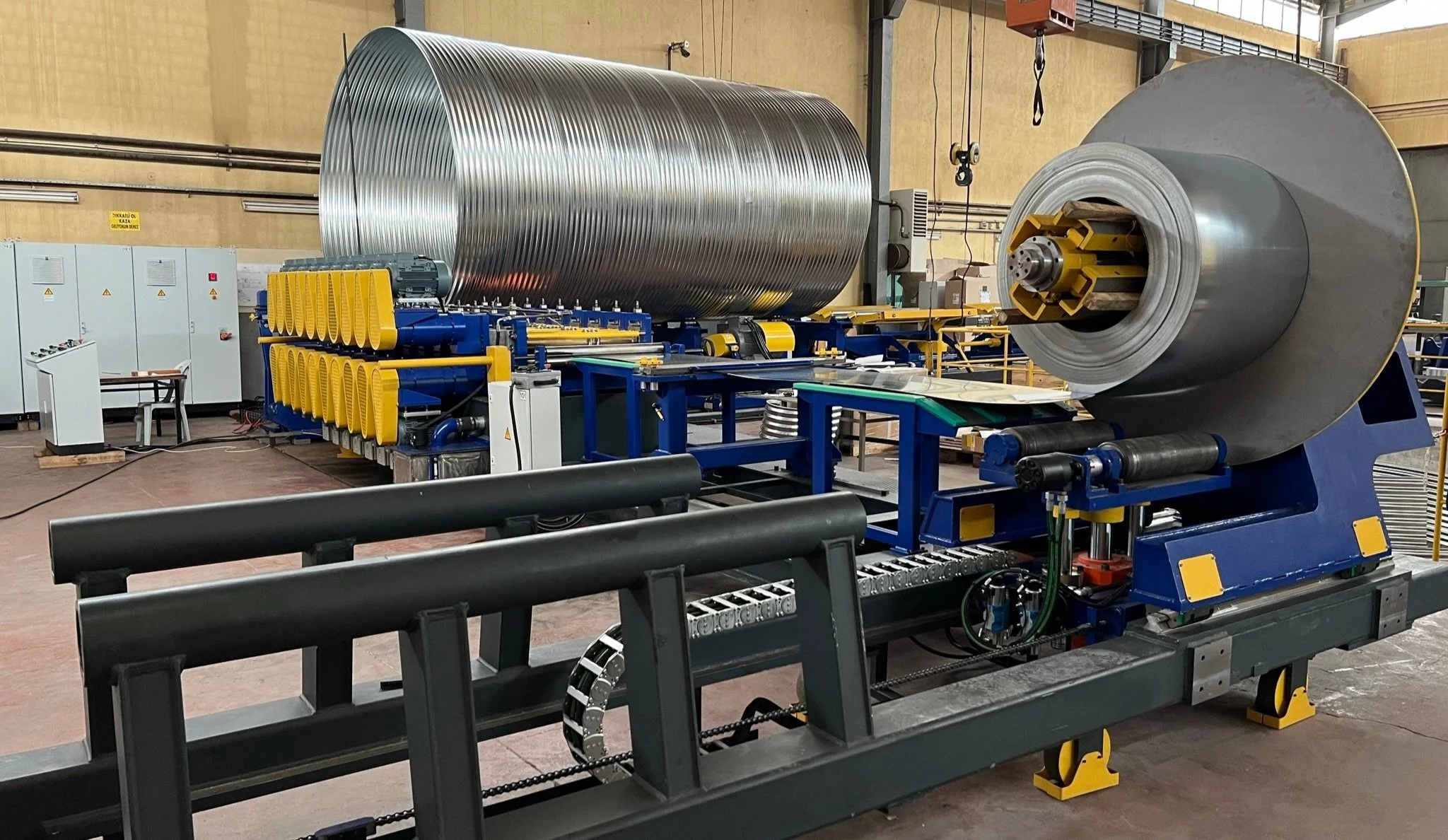

Corrugated Metal Pipe (CMP) Machine
Design parameters could be within the range of;
Material Thickness : 18 to 8 Gauge (1.00 to 4.26 mm)
Material Type : Galvanized, Aluminized, Aluminum, Trenchcoated
Diameter Range : 12” to 144”
Strip Speed : Variable to 80 ft/min (2400 cm/min)
Decoiler Capacity : 20,000 lb. (9000 kg)
With Selected / requested options;
Coil Rack (2 coil capacity) and Coil Buggy w/ Snubber
Pipe Hold-Down Stands
Re-Corrugators

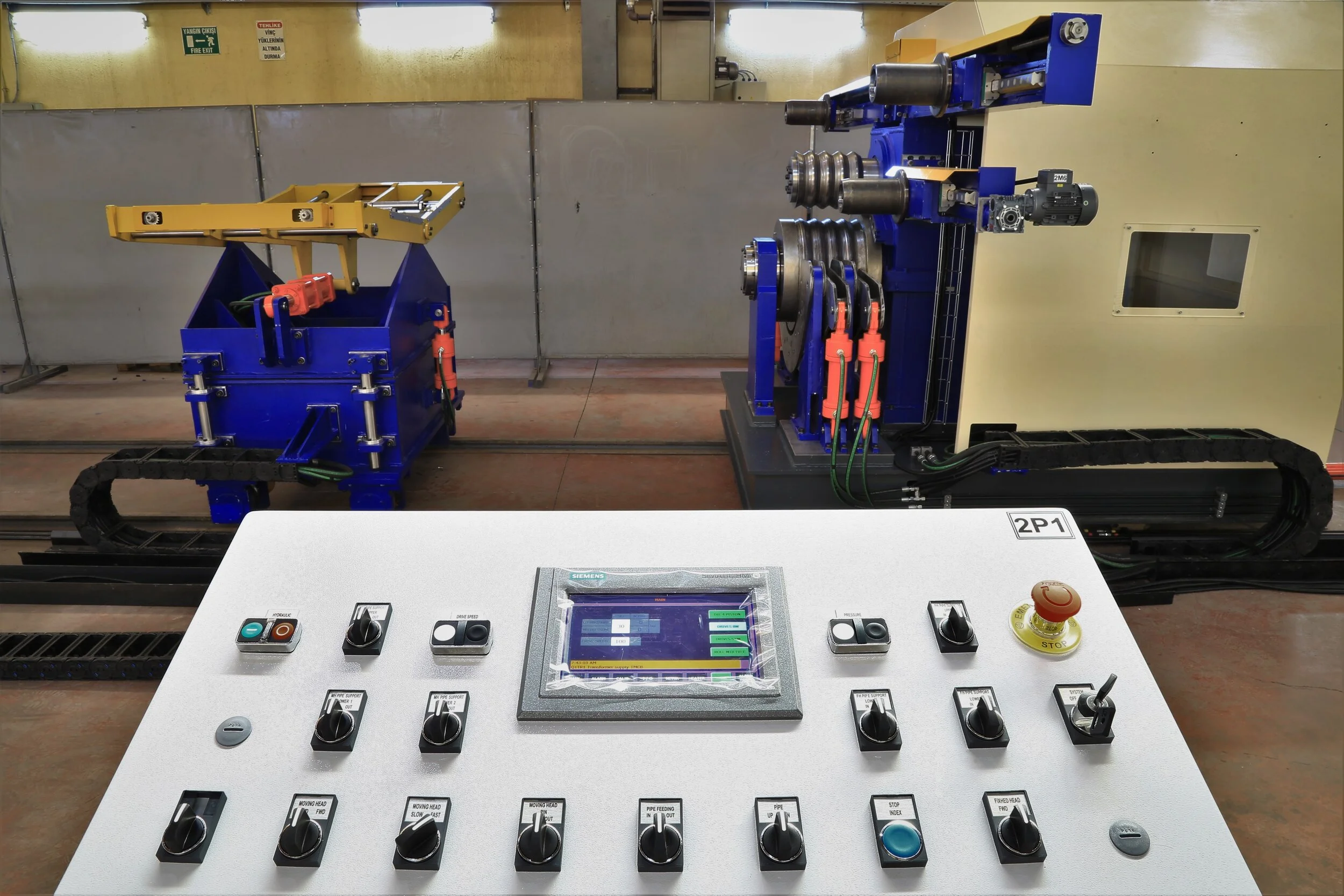

Double End Recorrugator Machine
Design Parameters;
Material Thickness : up to 8 gauge
Diameter Range : 12” to 144”
Pipe Length : 14 ft. to 40 ft.
2 2/3” x 1/2” Segmented Dies
Track and Buggies for 40 ft. Pipe
