Steel Pipe Machinery
All specifications are designed according to customers’ requirements.
In collaboration with “PRD” Pacific Roller Die, Hayward, CA, USA Since 1997
Large Diameter Pipe Machines
Spiral Welded Pipe Machines - SWP
Design parameters could be within the range of;
Strip Thickness : 1.5mm - 3mm / 4mm - 19mm / 5mm - 25.4mm
Coil Width : up to 2500 mm ( 100”)
Pipe Diameter : up to 3600 mm (144”)
Main Drive Capacity, 60 Tons, 100 Tons, 140 Tons, 170 Tons
Forming Capacity : up to 600 Tons
Pipe Length : up to 36 m. (118 ft.)
With Selected / requested options.
Hydrostatic Testing Machines
Design parameters could be within the range of;
Pipe Diameter : 16″ to 144″
Pipe Length : 6 meter to 24 meter
Max. Applicable Test Pressure : up to 350 Bar
Max. End Load : 5000 Ton
Standards : API, AWWA and Piling Pipes
Semi Automatic - Full Automatic
Pipe End Bevelers
Design parameters could be within the range of;
Pipe Diameter : 16″ to 144″
Pipe Length : 6 meter to 24 meter (20 ft. to 80 ft.)
Material Thickness : 5 mm to 30 mm
Material Grade : Up to X80
Cutting Angle : 30 degrees with +2 , -0 tolerances
Semi Automatic, Full Automatic
Holder clamps for Desired Diameters
Positioning System
Pipe Rotating Unit
Strip Edge Milling Machines
Cutter Head Diameters : 450 mm , 500 mm, 600 mm
Thickness up to 25.4 mm ( 1 in. )
Designed according to customer’s existing mills.

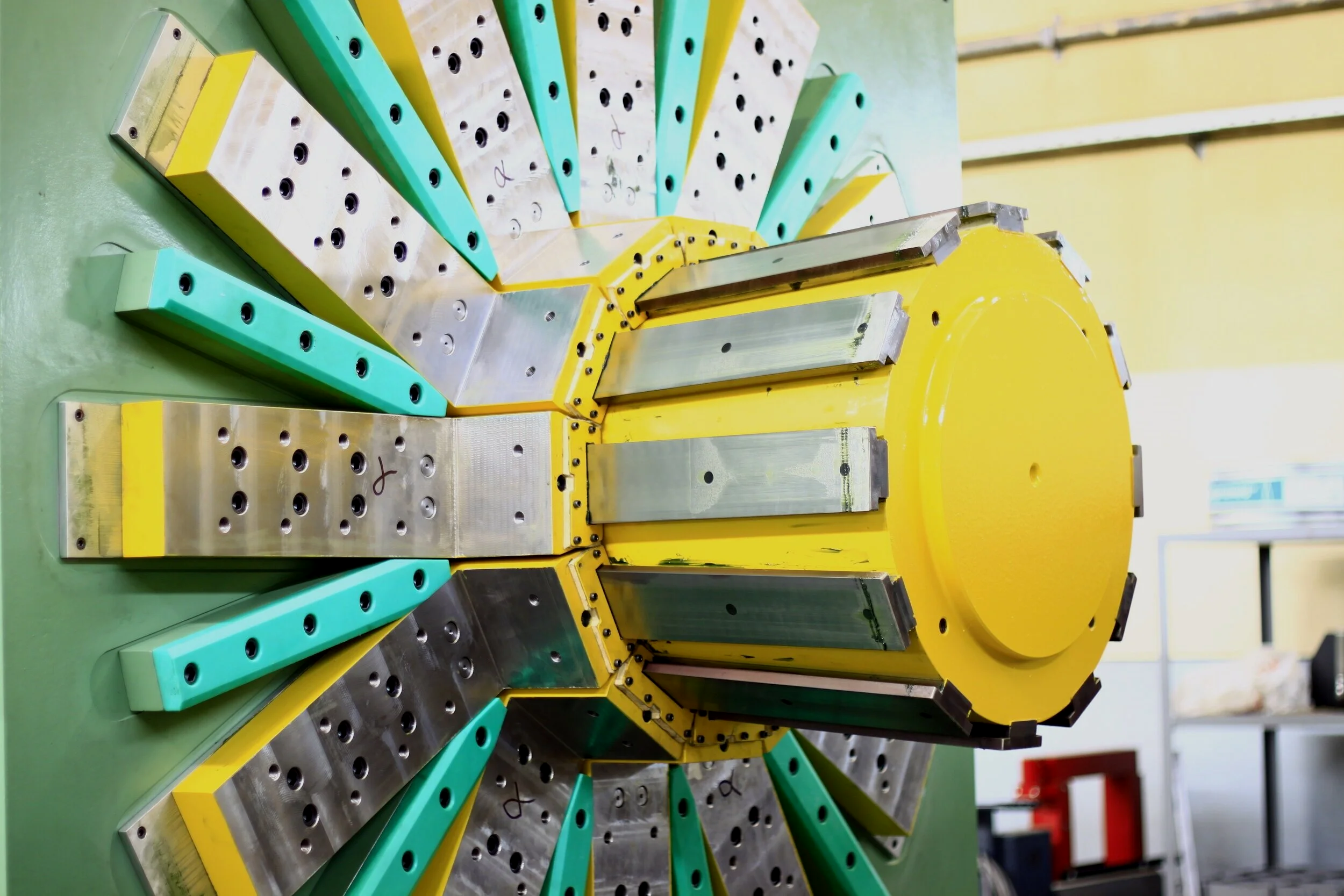

Pipe End Expanders
Pipe Diameter : 24″ to 144″
Material Thickness : 5 mm to 25.4 mm
Material Grade : Up to X80
Semi Automatic
Dies can be designed according to customer’s need.
Machines for ERW Pipe Factories
Finishing Equipment
Straighteners
Facing & Chamfering Machines
Hydrotesters
Pipe Threading Machines
Strip Edge Milling Machines
